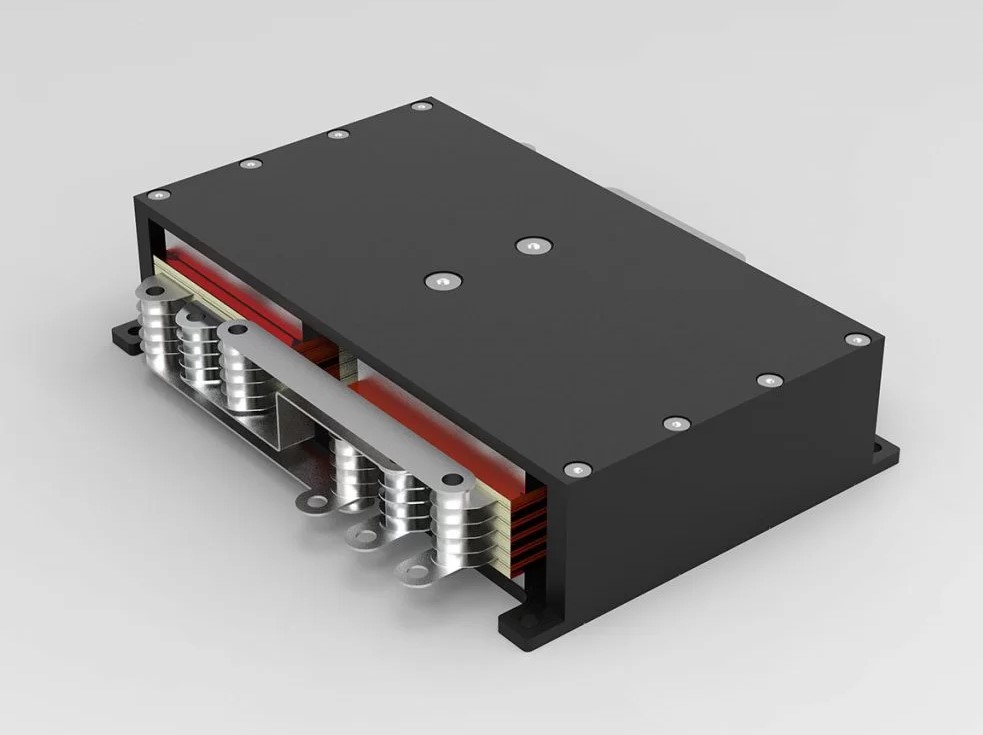

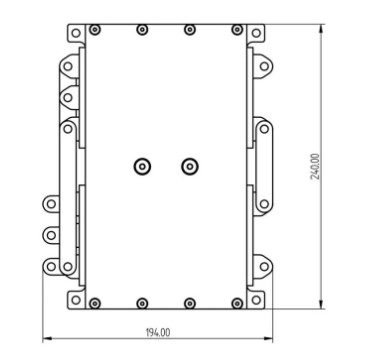

40kW Transformer
Specification Total output power 40kW Topology Full Bridge ZVT PSU output DC voltage and current 125V @ 312A max Primary Inductance 0.86mH ±25% Primary Voltage 500V – 700V Primary winding current 105A rms Secondary winding current…
Request a Quote
Specification
| Total output power | 40kW |
| Topology | Full Bridge ZVT |
| PSU output DC voltage and current | 125V @ 312A max |
| Primary Inductance | 0.86mH ±25% |
| Primary Voltage | 500V – 700V |
| Primary winding current | 105A rms |
| Secondary winding current | 300A rms |
| Switching frequency | 100kHz |
| Minimum bus voltage | 700V |
| Maximum bus voltage | 750V |
| Turns Ratio, Primary to Secondary | 10:3+3 |
| Core Losses | 80W |
| Winding Losses | 116W |
| Maximum Efficiency | 99.5% |
| Cooling | Heatsink @ 70°C |
| Ambient temperature | -40°C +70°C |
| Insulation test voltage | |
| Primary to secondary | 2500V rms |
| Primary to core | 2500V rms |
| Secondary to core | 2500V rms |
| Standard 1 | EN60950 |
| Standard 2 | IEC62368 |
